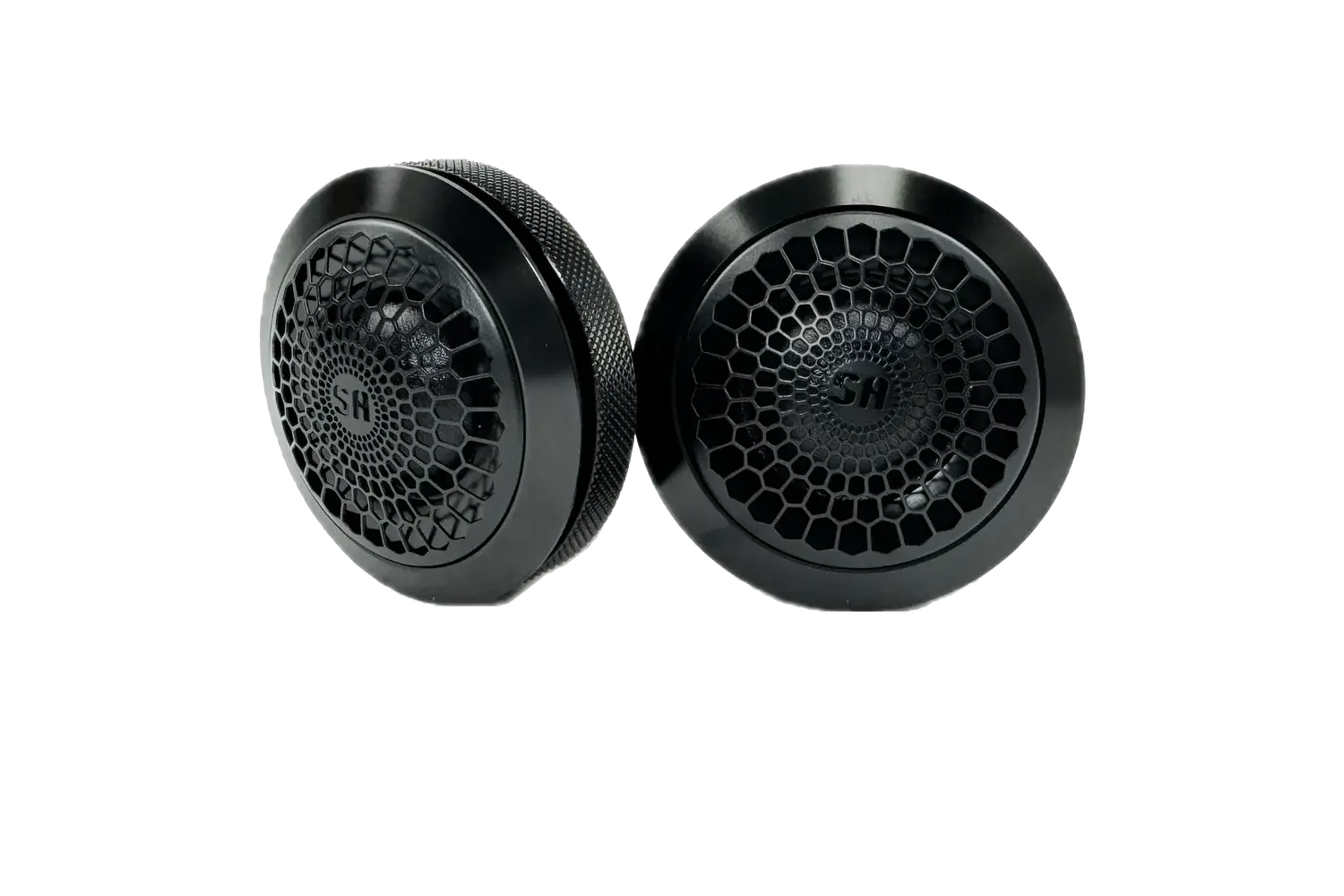

Sundown Audio SA-1T Silk Dome Tweeter
Add smooth high-frequency detail to a custom component system with the Sundown Audio SA-1T silk-dome tweeters. A 25.5 mm silk dome, neodymium motor and compact rear chamber provide a flexible starting point for a carefully crossed-over 2-way or 3-way speaker system.
Why Choose the SA-1T?
Silk-dome design for a smooth treble presentation
Neodymium motor and tuned rear chamber
Compact mounting format for custom tweeter placement
Manufacturer-specified power ratings include the required crossover conditions
Specifications
Model: SA-1T
Quantity: 2 tweeters (one pair)
Dome diameter: 25.5 mm, approximately 1 inch
Nominal impedance: 4 ohms per tweeter
Sensitivity: 92 dB
Power handling: 50W RMS with a 3,000 Hz high-pass crossover at 6 or 12 dB/octave; 65W RMS with a 5,000 Hz, 12 dB/octave high-pass crossover
Mounting depth: 0.75 inch
Cutout diameter: 2 inches
Installation & Fitment
A suitable high-pass crossover is essential. Do not connect these tweeters to an unfiltered full-range signal. Confirm the mounting opening and the crossover/DSP plan before purchase.
Sound World Green Bay can help with product selection, system matching and professional installation.
